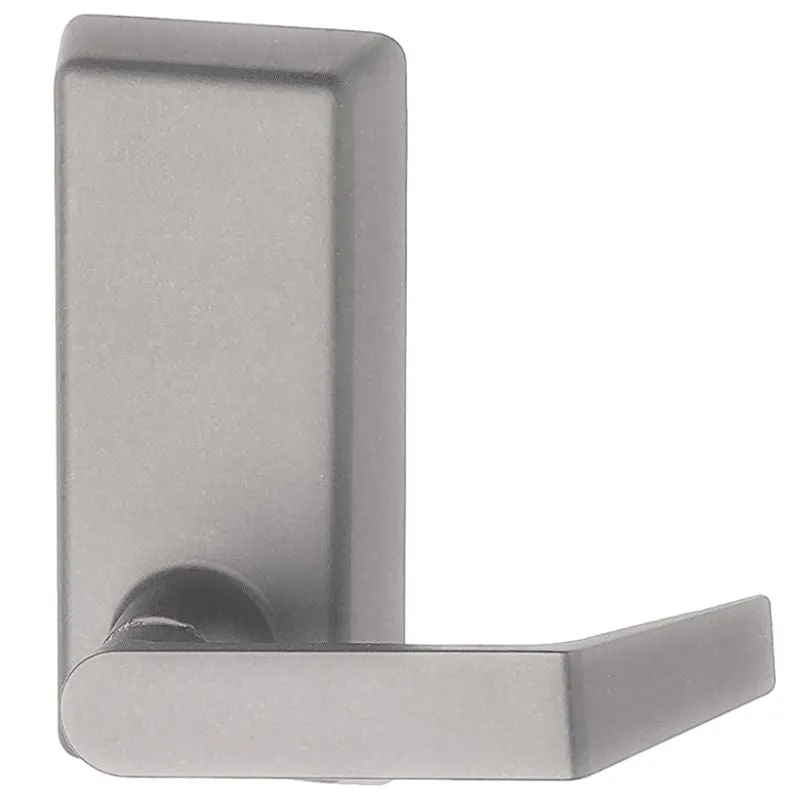

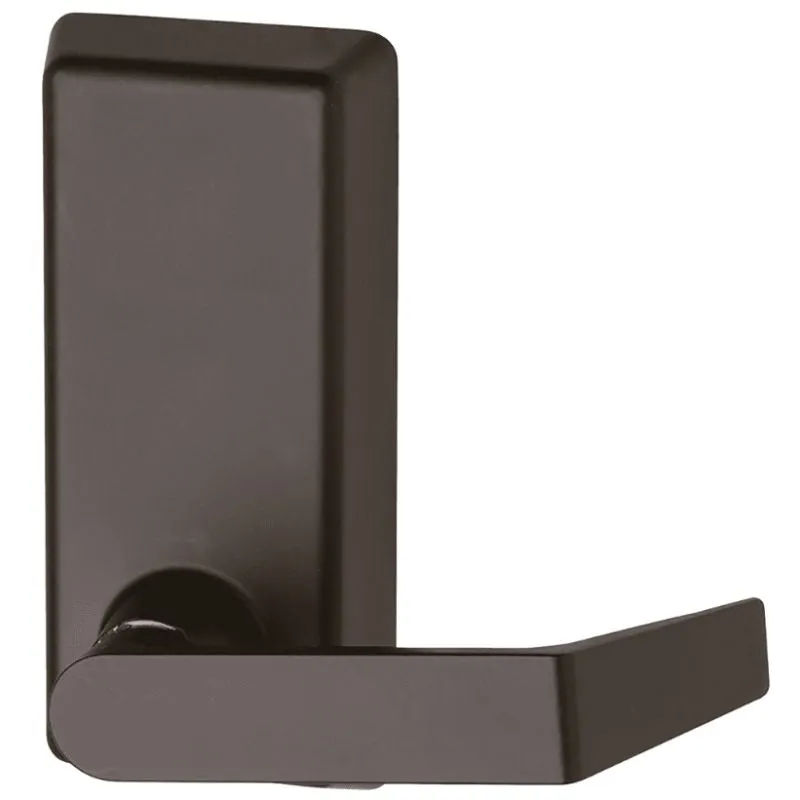

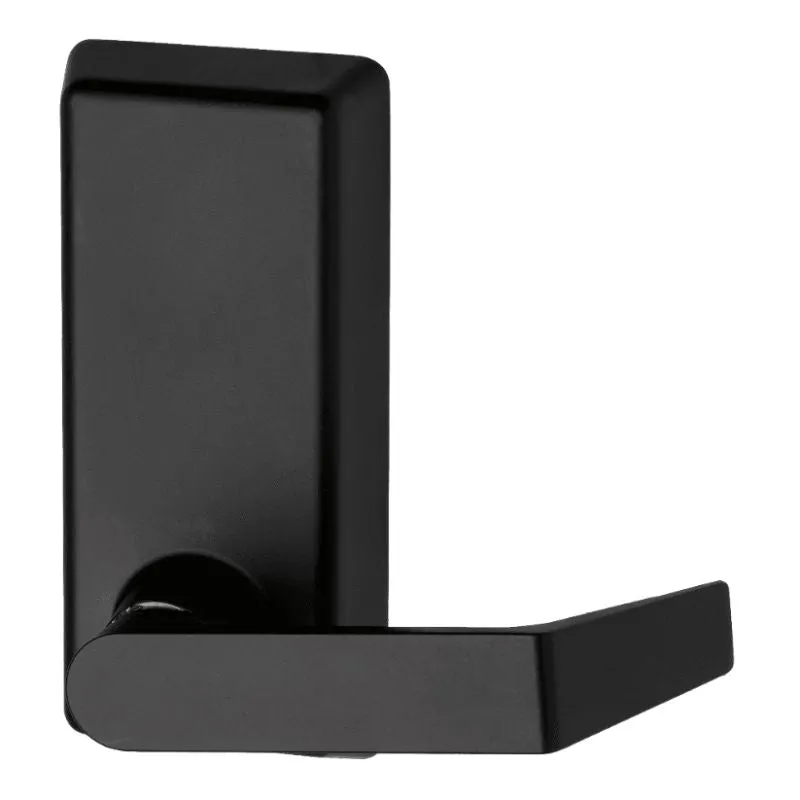

Von Duprin 230L-BE-06 Lever Trim, Passage Function, 06 Lever with Escutcheon, Grade 1, For 22 Series Exit Device
The Von Duprin 230L-06 Exit Trim has a grade 1 rating and is designed for use with the 22 Series Exit Device. It features a 06 lever with escutcheon and is specifically designed for passage function. This product does not come with a cylinder.
Passage Function - Used where doors do not need to lock
Product Specs
| Manufacturer | Von Duprin |
| SKU | 230L-BE-06 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | For Von Duprin 22 Series Exit Bars |
| ANSI Number | A156.3 |
| Design A | 06 Lever |
| Restrictions | No |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Burglar Rated | No |
| ADA Compliance | No |
| Finish |
689
|
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Device Type | Trim |
| Mechanical Function | Classroom |
| Hand | RHR or LHR |
| Includes Trim | Yes |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Trim Part No. | 230L-06 689 |
| Includes Cylinder(s) | No |
| Cylinder Type | 1-1/4" Mortise |
| Door Material | Metal or Wood |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
